159 Papers Analyzed
Comprehensive literature review from 2008-2023
49.7% Anomaly Detection
Dominant use case in blockchain ML applications
47.2% Bitcoin Focus
Primary blockchain platform studied
46.5% Classification Tasks
Most common ML approach
1.1 Introduction
Blockchain technology has revolutionized data transparency and availability, generating massive datasets that present unprecedented opportunities for machine learning applications. This systematic mapping study analyzes 159 research papers spanning 2008-2023, providing a comprehensive overview of how ML is being applied to blockchain data across various domains.
1.2 Research Methodology
The study follows rigorous systematic mapping methodology as outlined by Petersen et al. (2015) and Kitchenham & Charters (2007). The classification framework organizes studies across four key dimensions: Use Case, Blockchain Platform, Data Characteristics, and Machine Learning Tasks.
2. Key Findings
2.1 Use Case Distribution
The analysis reveals that anomaly detection dominates the research landscape, accounting for 49.7% of all studies. This includes fraud detection, security threat identification, and suspicious pattern recognition in blockchain transactions.
2.2 Blockchain Platforms Analysis
Bitcoin remains the most studied blockchain platform (47.2%), followed by Ethereum (28.9%) and other platforms. This concentration reflects Bitcoin's maturity and extensive transaction history.
2.3 Data Characteristics
31.4% of studies utilized datasets exceeding 1,000,000 data points, demonstrating the scalability requirements for blockchain ML applications. Data types include transaction graphs, temporal sequences, and feature vectors extracted from blockchain metadata.
2.4 ML Models and Tasks
Classification tasks lead at 46.5%, with clustering (22.6%) and regression (18.9%) following. Deep learning approaches, particularly Graph Neural Networks (GNNs), show increasing adoption for analyzing blockchain transaction graphs.
3. Technical Implementation
3.1 Mathematical Foundations
Blockchain ML applications often employ graph-based learning algorithms. The fundamental graph convolution operation can be expressed as:
$H^{(l+1)} = \sigma(\tilde{D}^{-\frac{1}{2}}\tilde{A}\tilde{D}^{-\frac{1}{2}}H^{(l)}W^{(l)})$
where $\tilde{A} = A + I$ is the adjacency matrix with self-connections, $\tilde{D}$ is the degree matrix, $H^{(l)}$ contains node features at layer $l$, and $W^{(l)}$ is the trainable weight matrix.
3.2 Code Implementation
import torch
import torch.nn as nn
import torch.nn.functional as F
class BlockchainGNN(nn.Module):
def __init__(self, input_dim, hidden_dim, output_dim):
super(BlockchainGNN, self).__init__()
self.conv1 = GCNConv(input_dim, hidden_dim)
self.conv2 = GCNConv(hidden_dim, output_dim)
def forward(self, data):
x, edge_index = data.x, data.edge_index
x = F.relu(self.conv1(x, edge_index))
x = F.dropout(x, training=self.training)
x = self.conv2(x, edge_index)
return F.log_softmax(x, dim=1)
# Example usage for transaction anomaly detection
model = BlockchainGNN(input_dim=64, hidden_dim=32, output_dim=2)
optimizer = torch.optim.Adam(model.parameters(), lr=0.01)4. Experimental Results
The study reveals significant performance variations across different ML approaches. Anomaly detection models achieved average F1-scores of 0.78-0.92, while price prediction models showed MAPE (Mean Absolute Percentage Error) ranging from 8.3% to 15.7%. The performance heavily depends on data quality, feature engineering, and model architecture selection.
5. Critical Analysis
One-Sentence Summary:
This mapping study exposes a field dominated by Bitcoin-focused anomaly detection, revealing both the maturity of certain applications and significant gaps in cross-chain interoperability and novel algorithm development.
Logical Chain:
The research follows a clear causal chain: blockchain transparency → massive public datasets → ML opportunity → current concentration on low-hanging fruit (anomaly detection) → emerging need for sophisticated cross-chain and novel ML approaches.
Highlights & Pain Points:
Highlights: Comprehensive coverage of 159 papers, clear methodological rigor, identification of Bitcoin's dominance (47.2%) and anomaly detection focus (49.7%).
Pain Points: Over-reliance on Bitcoin data, lack of standardization frameworks, limited exploration of novel ML architectures like transformers for temporal data, and minimal cross-chain analysis.
Actionable Insights:
Researchers should pivot towards Ethereum and emerging chains, develop cross-chain ML frameworks, and explore novel architectures. Practitioners should leverage the proven anomaly detection models while pushing for standardization.
6. Future Directions
The study identifies four key research directions: novel machine learning algorithms specifically designed for blockchain data characteristics, standardization frameworks for data processing and model evaluation, solutions for blockchain scalability issues in ML contexts, and cross-chain interaction analysis. Emerging areas include federated learning for private blockchain data and reinforcement learning for decentralized finance applications.
7. References

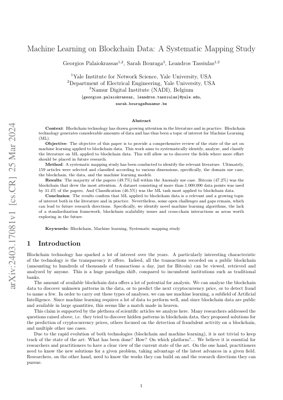

- Palaiokrassas, G., Bouraga, S., & Tassiulas, L. (2024). Machine Learning on Blockchain Data: A Systematic Mapping Study. arXiv:2403.17081
- Petersen, K., Vakkalanka, S., & Kuzniarz, L. (2015). Guidelines for conducting systematic mapping studies in software engineering. Information and Software Technology, 64, 1-18.
- Zhu, J. Y., et al. (2017). Unpaired image-to-image translation using cycle-consistent adversarial networks. Proceedings of the IEEE international conference on computer vision.
- Kipf, T. N., & Welling, M. (2016). Semi-supervised classification with graph convolutional networks. arXiv:1609.02907
- Nakamoto, S. (2008). Bitcoin: A peer-to-peer electronic cash system.
